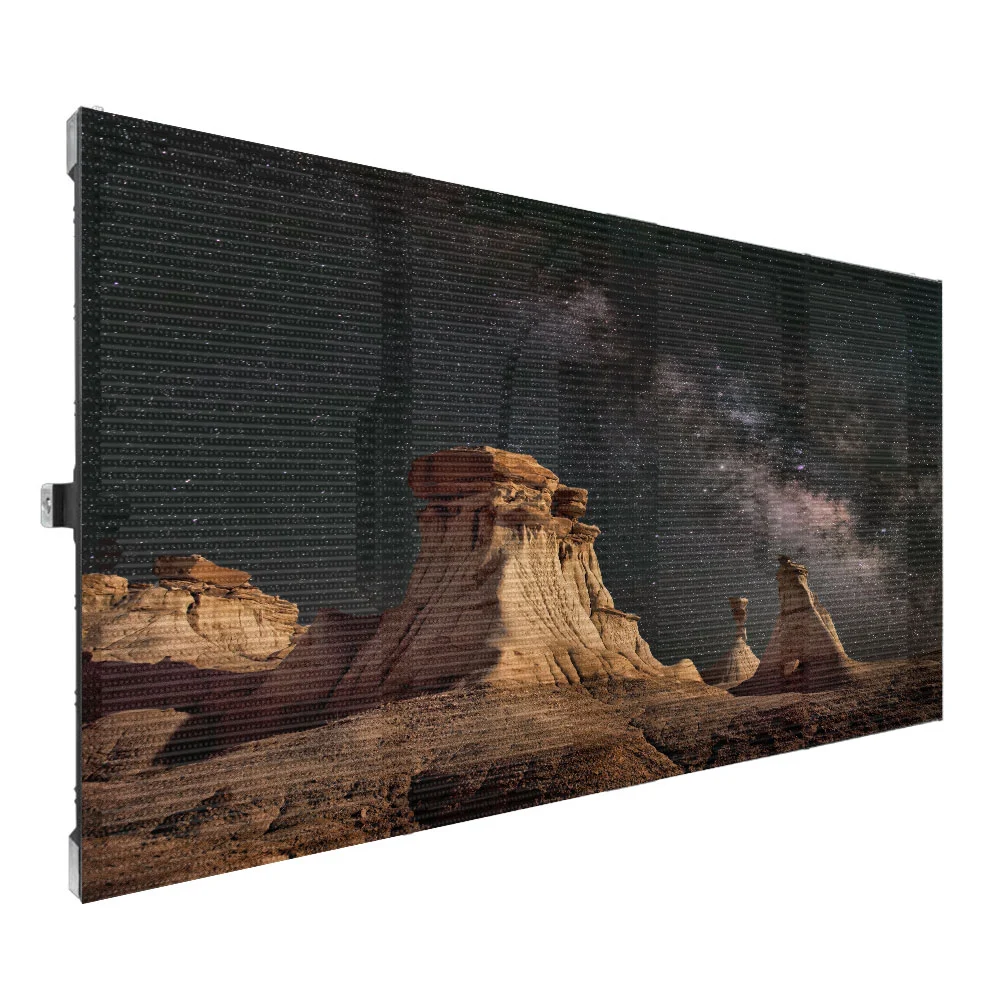

Outdoor Rental LED Screen R-Water Series with good light transmittance

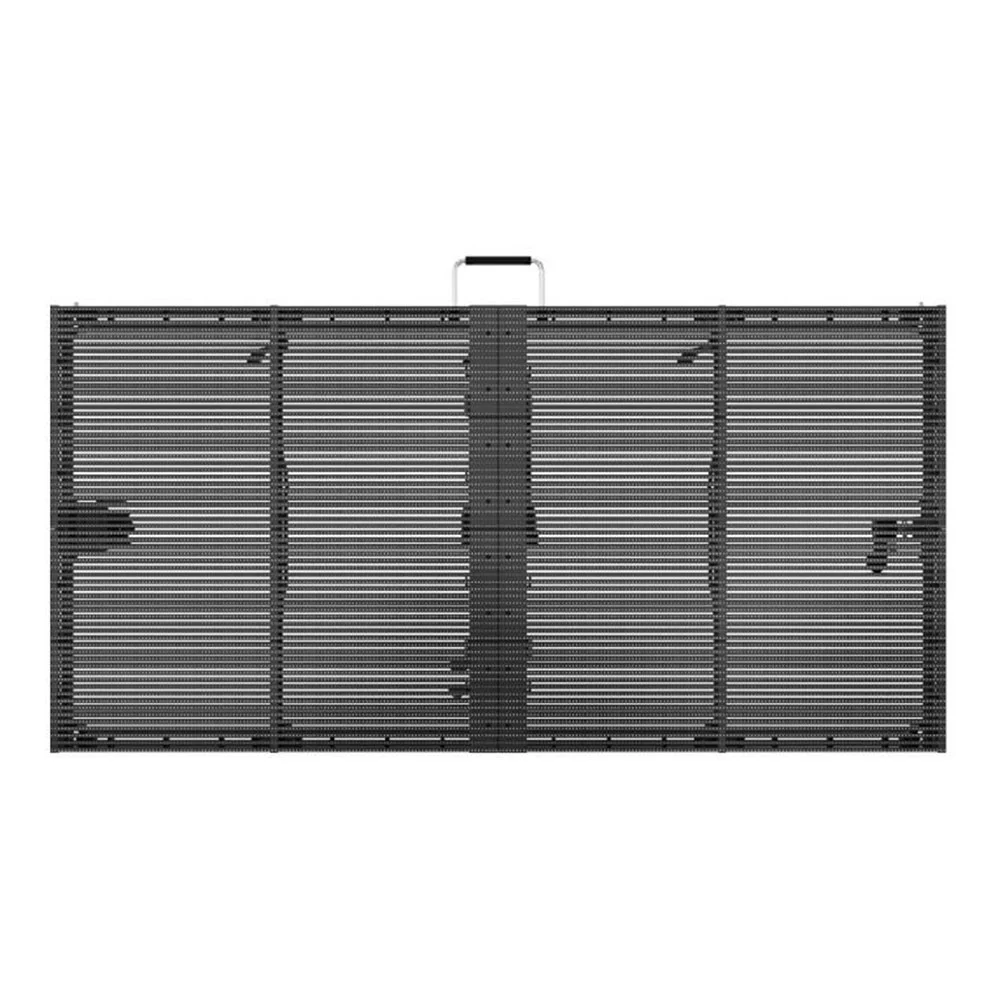

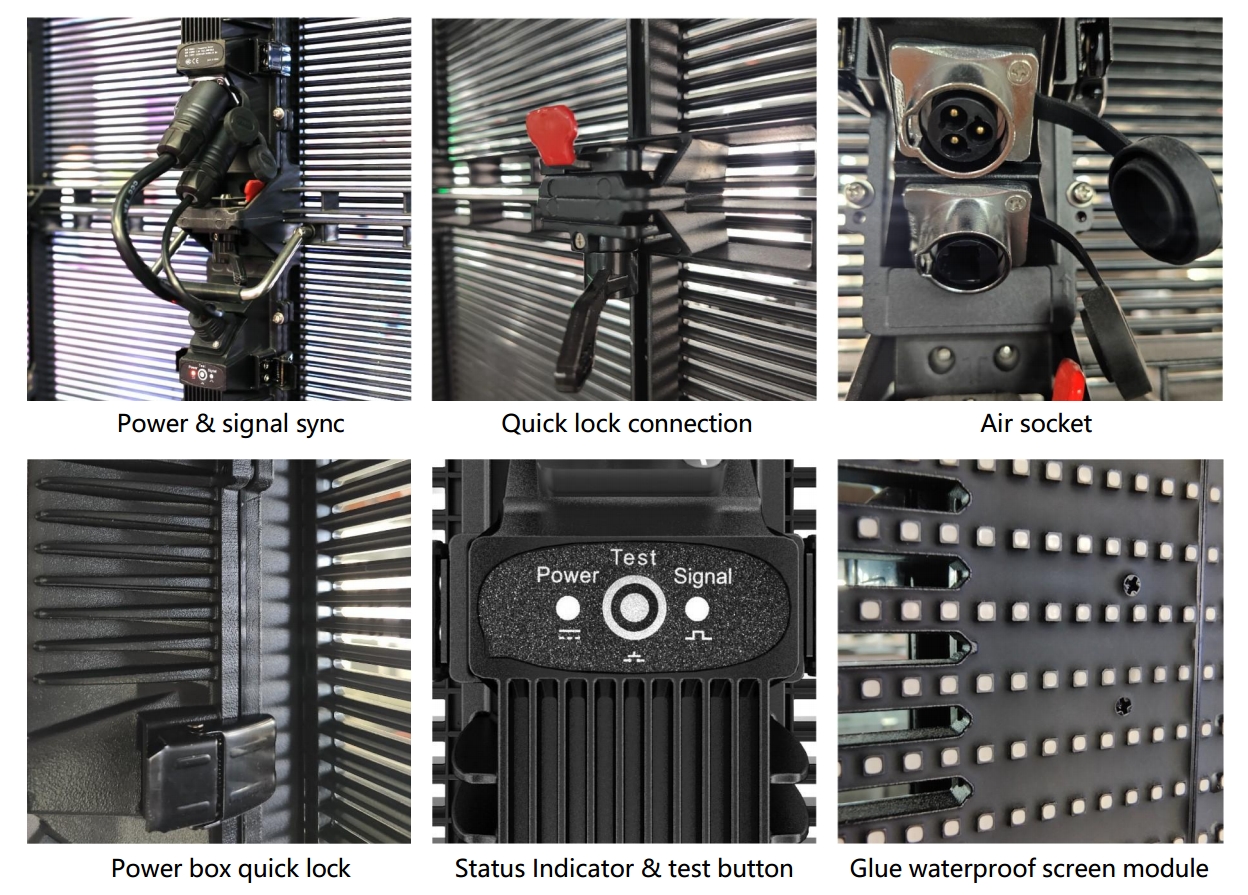

CNC precision machining cabinet

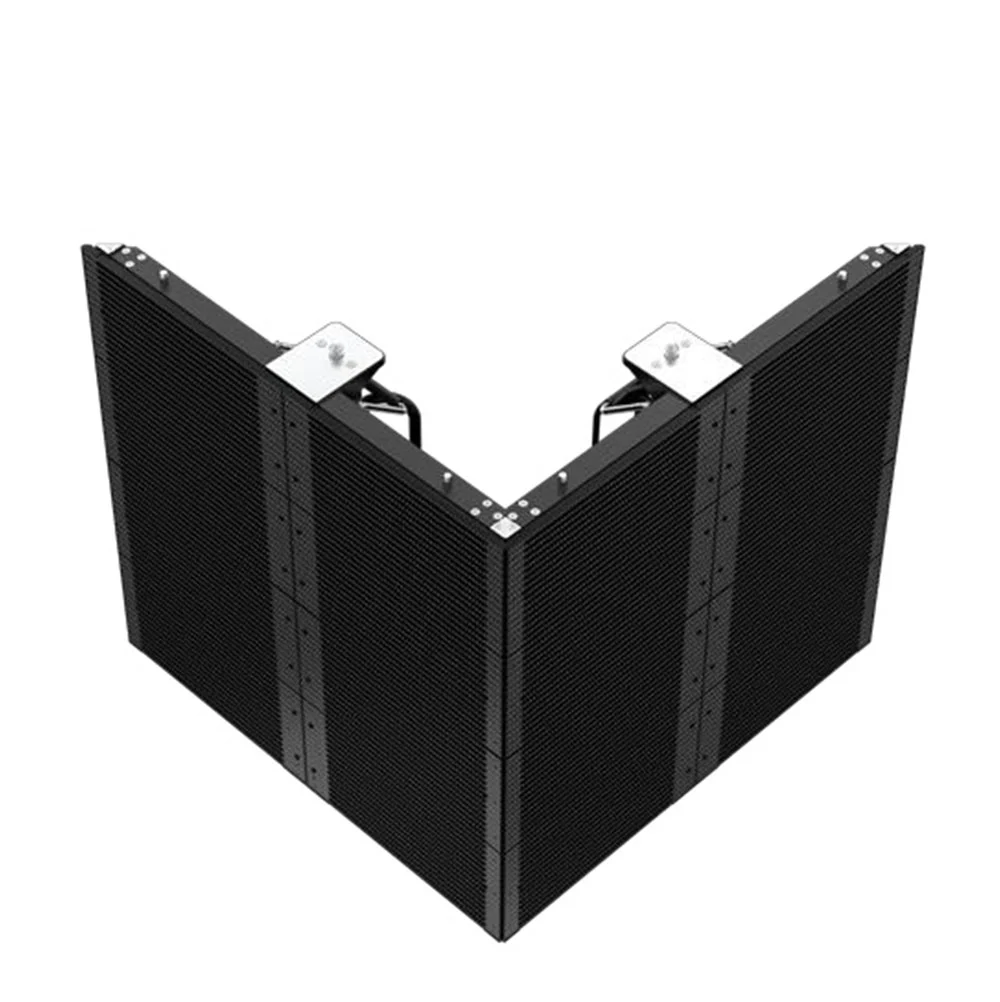

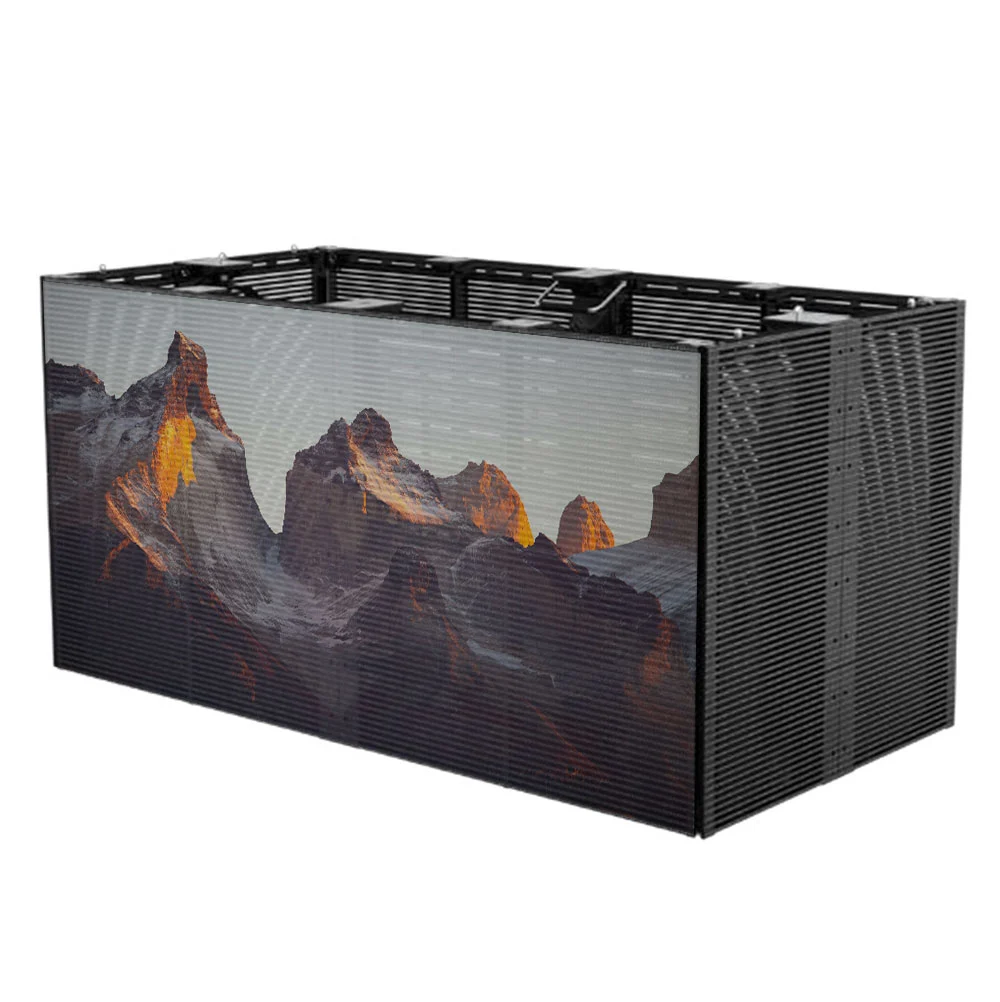

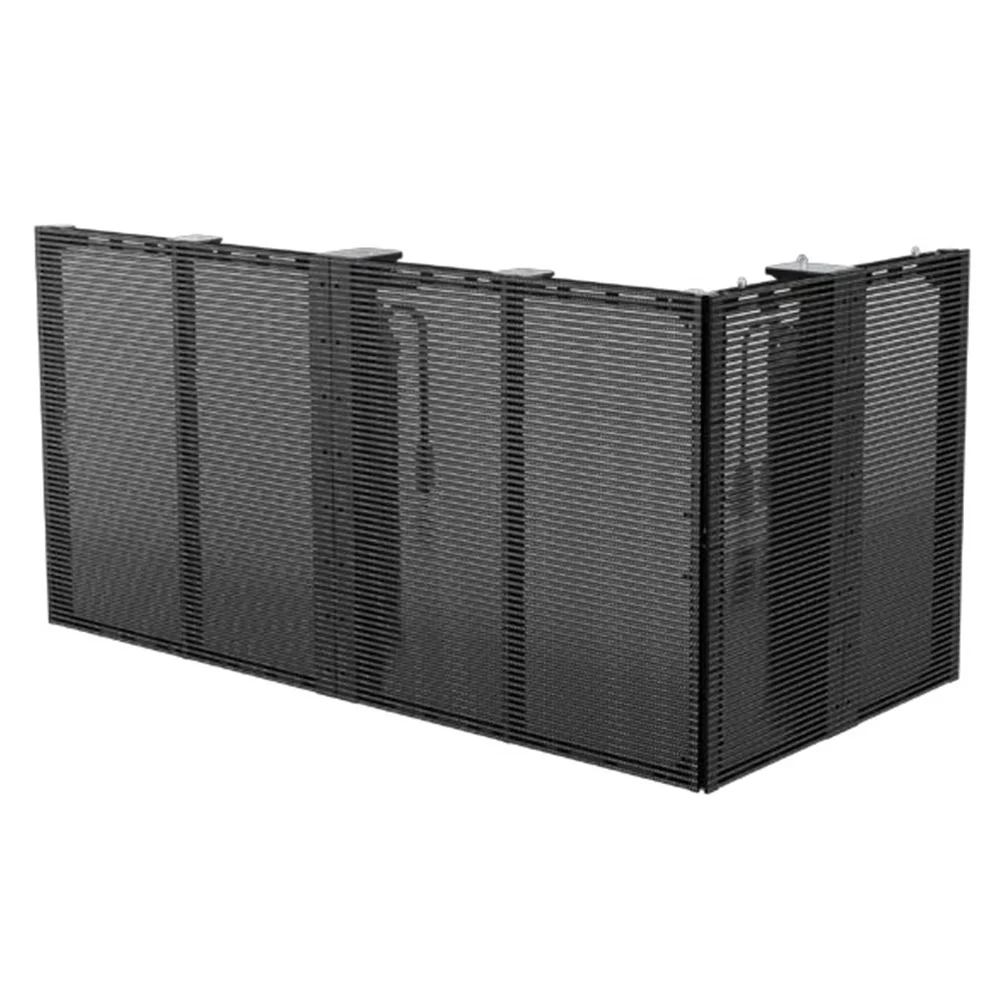

Flexible cabinets combination method
Less wind resistance and safer
Seekstarled R-Water could do with P3.9-7.8 P5.2-10.4 P10.4-10.4 P15.6-15.6
| Model | P3.9-7.8 | P5.2-10.4 | P10.4-10.4 | P15.6-15.6 | ||||
| Pixel Pitch(mm) | W:3.9 H:7.8 | W:5.2 H:10.4 | W:10.4 H:10.4 | W:15.6 H:15.6 | ||||
| Transparency | 53% | 65% | 65% | 80% | ||||
| Pixel(dot/m²) | 32768 | 18432 | 9216 | 4096 | ||||
| Scanning Method | 1/8 | 1/4 | 1/2 | Static | ||||
| Brightness(cd/m²) | ≥4500 | ≥4500 | ≥4500 | ≥4500 | ||||
| LED Specification | SMD1921 | SMD1921 | SMD2727 | SMD2727 | ||||
| Best Viewing Distance/m | 4 | 6 | 10 | 15 | ||||
| Maximum Viewing Angle | 140° | |||||||
| LED Lamp Life | ≥100,000 hours | |||||||
| LED Pixel Composition | RGB 3 in 1 | |||||||

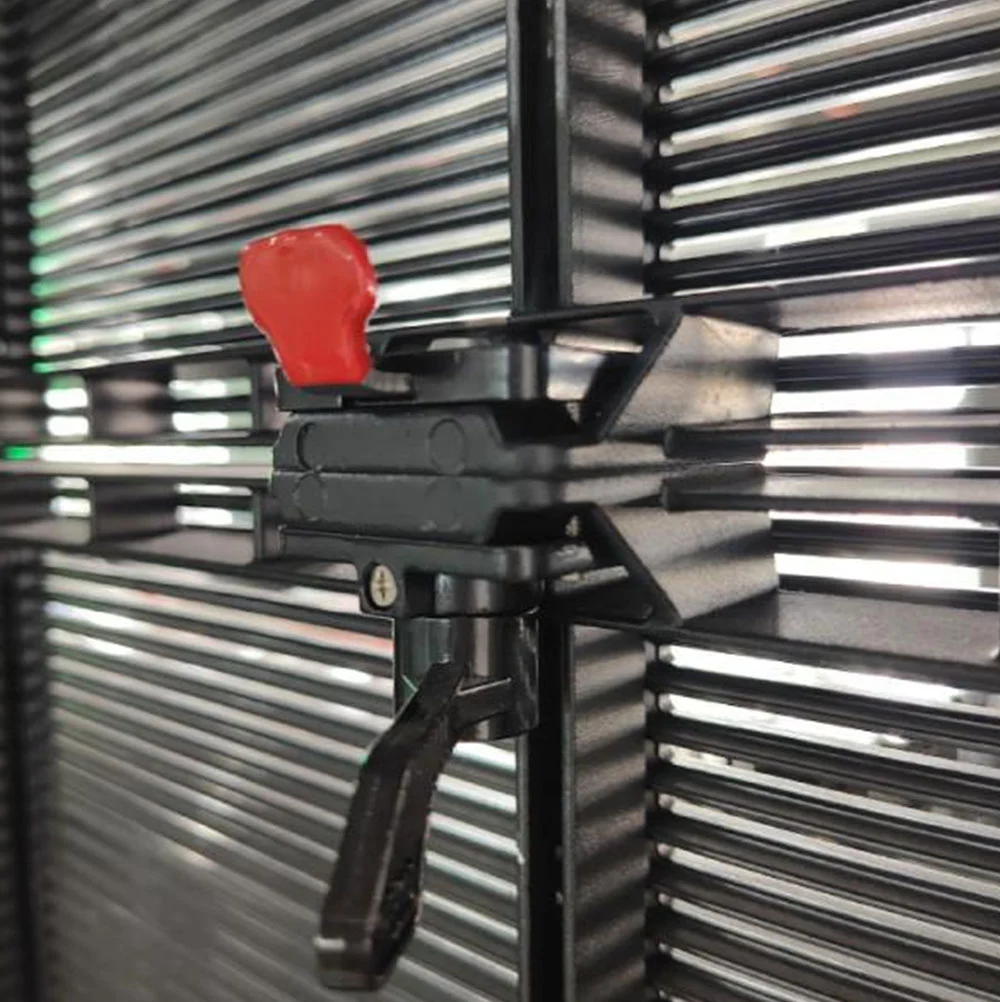

| Cabinet Connection | Fast Lock | |||||||
| Cabinet Material | Die Cast Aluminum | |||||||
| Maintenance | Front / Rear | |||||||
| Protection Grade | IP65 | |||||||
| Cabinet Size(mm) | 1000*500*80 | |||||||
| Cabinet Weight | 15kg/m² | |||||||
| Grayscale Level | 14Bit | |||||||
| Color Temperature | 3000k/12000k Adjustable | |||||||
| MTBF | ≥ 6500 hours | |||||||
| Working Temperature | -20 ~60℃ / 20%~90% | |||||||
| Storage Temperature | -15 ~55℃ / 10%~90% | |||||||
| Shadow Removal | System standard | |||||||
| LED Control System | Nova-star、Colorlight | |||||||
| Data Connection | Wi Fi / DVI / HDMI / DP / USB/RJ45 network remote control | |||||||
| Input Voltage | AC100 ~240V 50/60Hz | |||||||
| Maximum Power(W/m²) | 800 | |||||||
| Average Power(W/m²) | 240 | |||||||
| Refresh Rate(hz) | 3840 | |||||||
| Packing | Wooden box or flightcase | |||||||
| Installation Method | Hanging (10 cabinets vertically) /base installation/fixed installation | |||||||

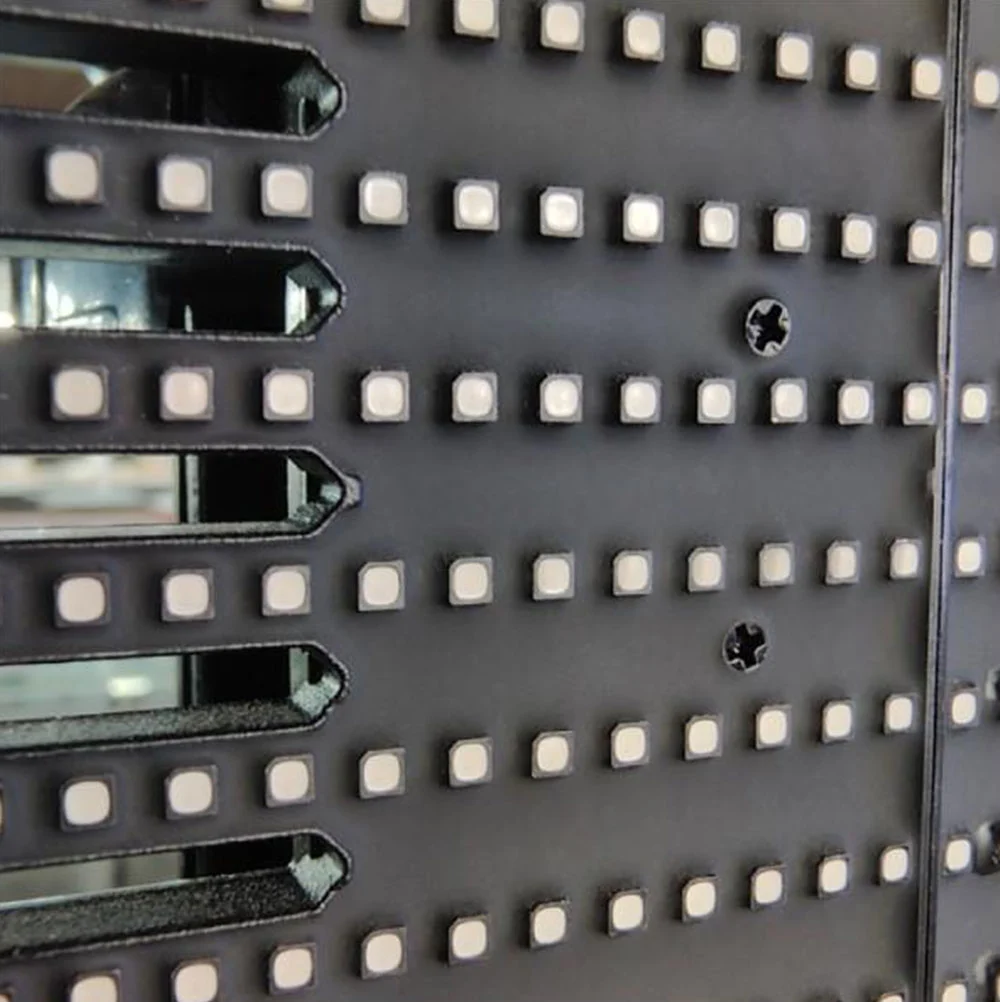

Outdoor rental transparent screen is a highly portable and easy-to-assemble productdesigned for outdoor rental use, the whole design follow real EMC standard with 10 layers PCBboard, lP65 both front and rear,high refresh rate, with CNC high precision machined and privatemold die-casting cabinet, high transparency has pretty low wind resistance when used for outdoor stages or events etc. lt is an ideal choice for a variety of applications and make your stagemore innovative and attractive!
Sincerely Cooperate and Treat with Sincerity. We look forward to offering you quality LED display.
