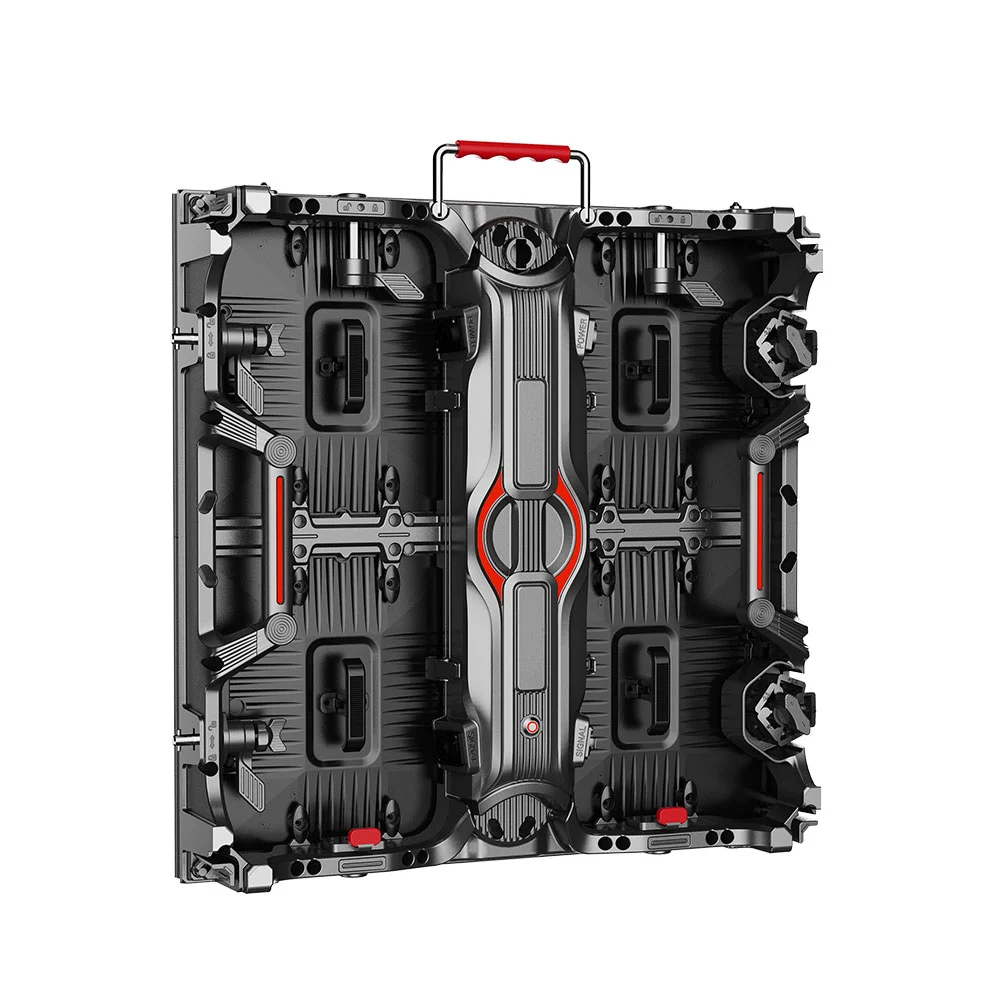

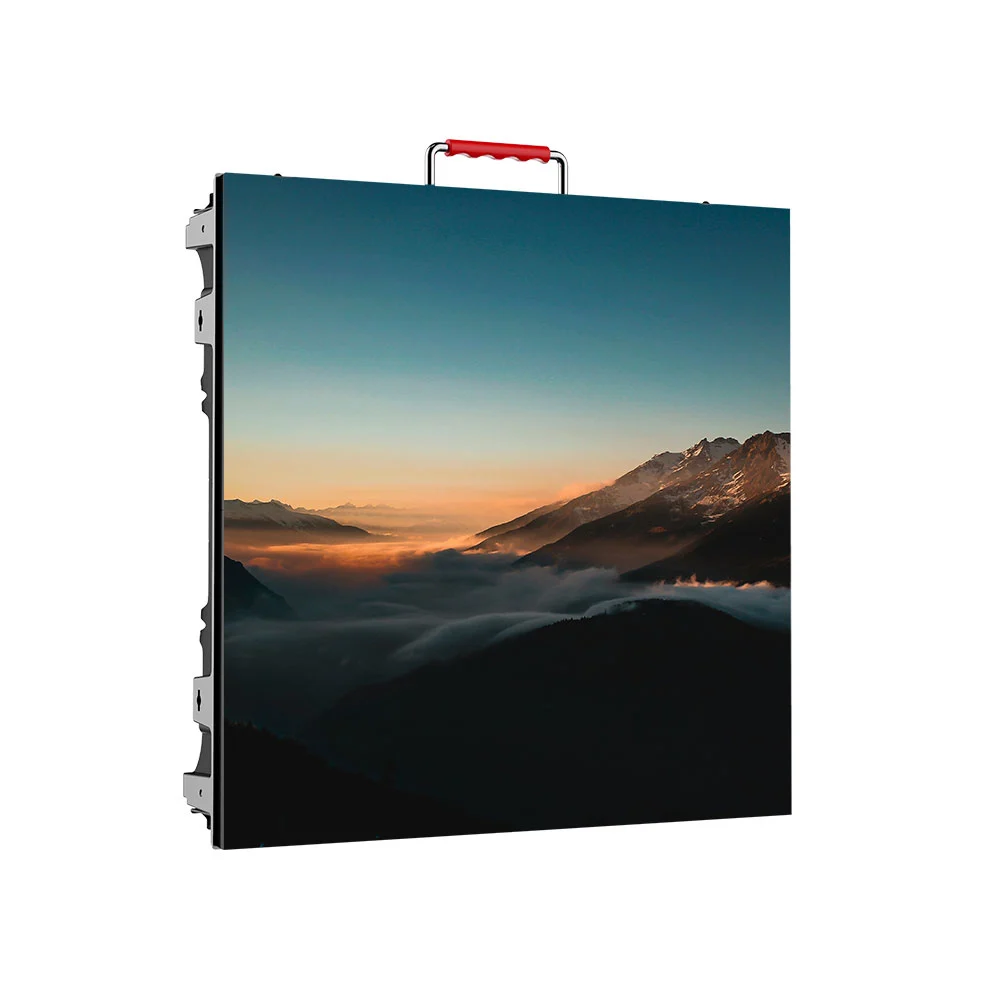

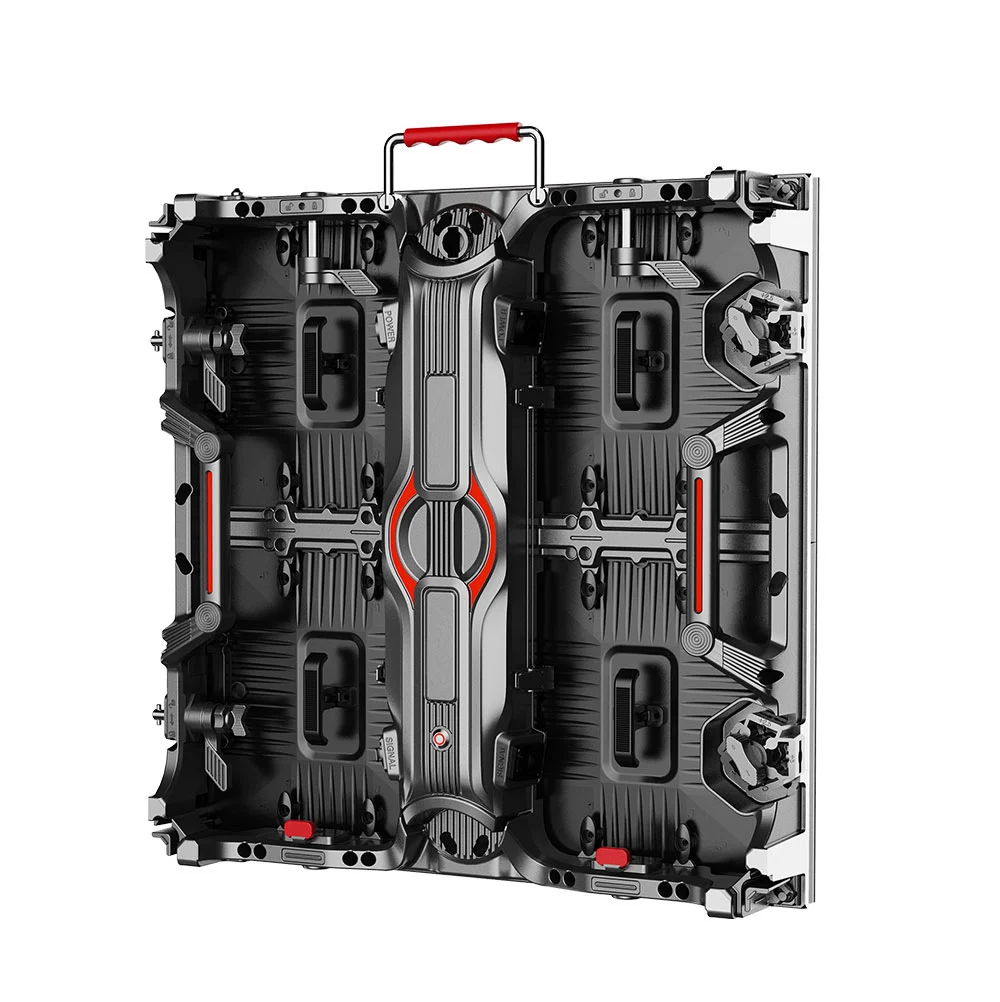

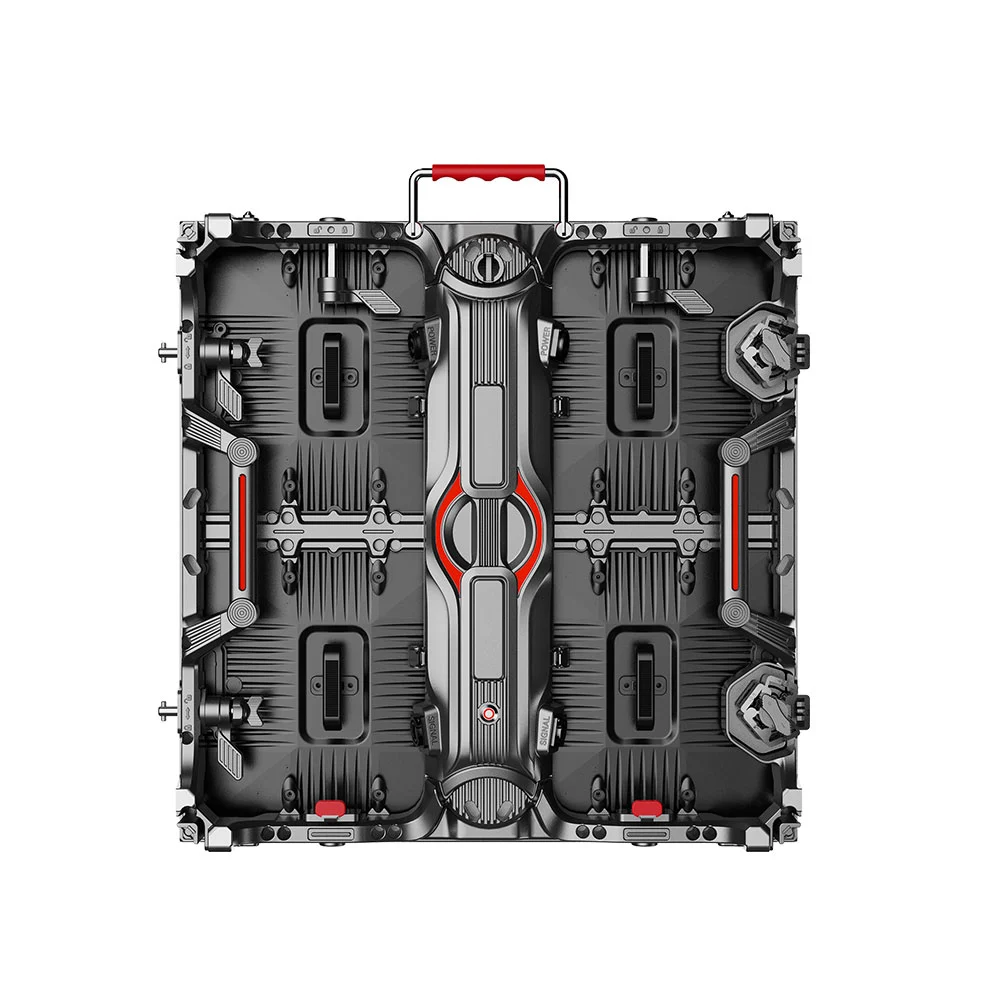

LED Video Wall Rental R-Wood Series

  • LED Video Wall Rental R-Wood Series with innovative curve lock system

  • Modular design, easy to service

  • Ultra-slim but strong

  • Quick set-up and disassembly

  • Seekstarled R-Wood could do with P1.953 P2.5 P2.604 P2.976 P3.91 P4.81

Contact Us

LED Video Wall Rental R-Wood Series Specifications

ModelOutdoor P2.604Outdoor P2.976Outdoor P3.91Outdoor P4.81Indoor P1.953Indoor P2.5Indoor P2.604Indoor 2.976Indoor 3.906
Pixel Pitch(mm)2.6042.9763.9064.811.9532.52.6042.9763.906
Pixel Density(dots/m²)147,456112,89665,53643,264262,178160,000147,456112,89665,536
Scanning Method1/241/211/161/131/321/321/241/211/16
LED TypeSMD1415SMD1415SMD1921SMD1921SMD1515SMD1515SMD1415SMD2020SMD2020
Module Size (mm)250x 250250x 250250 x 250250 x 250250 x 250250x 250250x 250250 x250250x250
Module Resolution (dots)96x9684x8464x6452×52128x128100x10096x9684x8464x64
Cabinet Size(mm)500×500/500×1000
Cabinet Resolution(dots)192x192/192x384168x168/168x336128x128/128x256104×104/104×208256x256/256x512200x200/200x400192x192/192x384168x168/168x336128x128/128x256
Cabinet Weight(kg/m²)7.5/12.57.5/12.57.5/12.57.5/12.57.0/11.87.0/11.87.0/11.87.0/11.87.0/11.8
Cabinet Material



Die-casting aluminium



Maintenance ModeFront and Rear
Brightness(cd/m²)4500500050005000500-900600-1100600-1100600-1100600-1100
Refresh Rate (Hz)3840
Gray Scale(bit)13-16
Ave. Power(w/m²)267267267267150150150150150
Max. Power(W/m²)800800800800450450450450450
