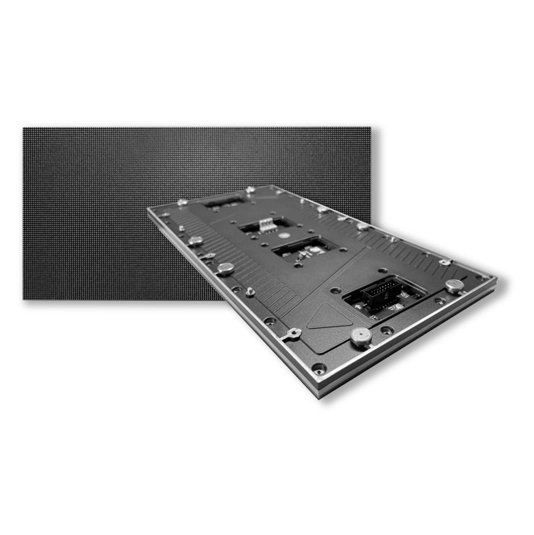

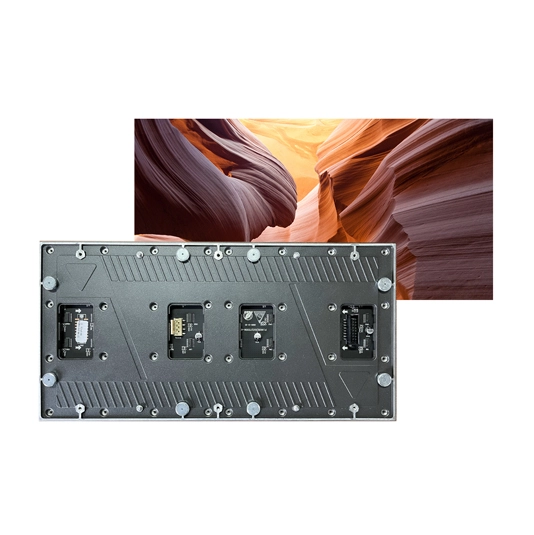

Fine Pitch LED Screen F-Fire Series with excellent color uniformity and consistency

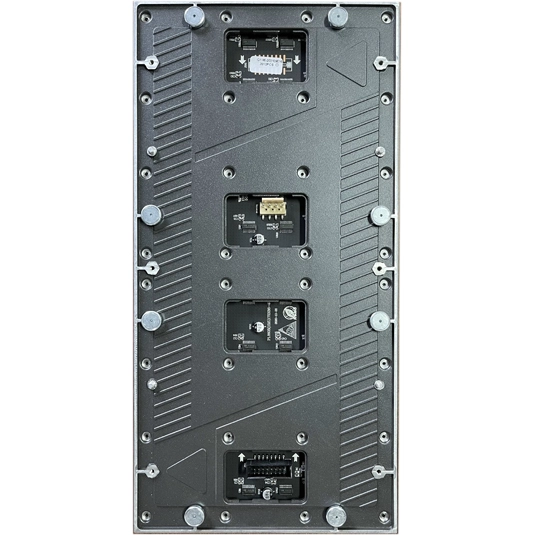

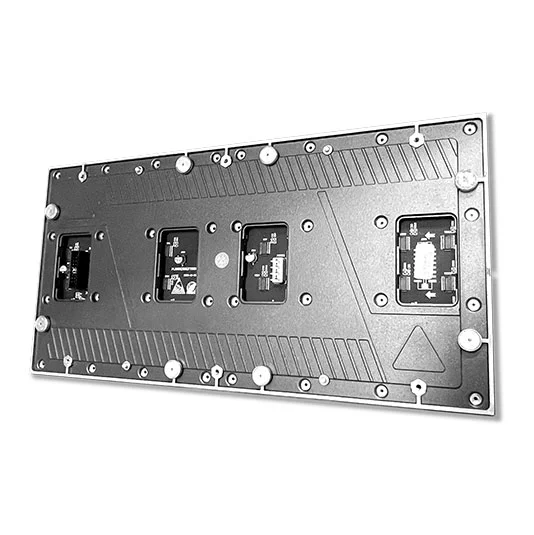

All-aluminium bottom shell design and strong heat dissipation
Surface ink color treatment process
Eye-friendly ultra clear visual
Seekstarled F-fire could do with P1.2 P1.5 P1.8
| Parameters | Specifications | |||
| Physical parameters | Pixel Structure（SMD） | 1010 | 1212 | 1515 |
| Pixel Composition | 1R1G1B | |||
| Pixel Pitch（mm） | 1.25 | 1.53 | 1.86 | |
| Pixel Density（Dots/㎡） | 640,000 | 422,500 | 288,906 | |
| Module Size（mm） | 320（L） * 160（W） * 11.8（H） | |||
| Module Resolution（Dots） | 256 * 128 | 208 * 104 | 172 * 86 | |
| Module Input（V） | 4.2 ~ 5 | |||
| Module Peak Power（W) | ≤ 25 | |||
| Module Material | Pure magnetic suction design with die cast aluminum bottom shell | |||
| Cabinet Resolution（Dots） | 512 * 384 | 416 * 312 | 344 * 258 | |
| Cabinet Modules（Pcs） | 2 * 3 | |||
| Cabinet Size（mm） | 640（L） * 480（W） * 58.8（H） | |||
| Cabinet Weight（Kg） | ≤ 7.5 | |||
| Cabinet Area（㎡） | 0.3072 | |||
| Cabinet Material | Die casting aluminum | |||
| Maintenance Mode | Front service | |||
| Photoelectric parameters | Single Pixel Color/Brightness Calibration | Yes | ||
| White Balance Brightness（Nit） | ≥ 500（0~255 adjustable， adjustment step 1） | |||
| Standard Color Temperature（K） | 6500（1000~9500 adjustable） | |||
| Refresh Rate（Hz） | ≥ 1920 ~ 3840 | |||
| Viewing Angle | Vertical horizontal perspective ≥160° | |||
| Color Processing Digits（Bit) | ≤ 16 Bit | |||
| Low Brightness &.High Gray Effect | Full brightness ≤ 16Bit， 20% brightness ≤ 14bit | |||
| Image Feame Changing Frequency（Hz） | 50 / 60 | |||
| Contrast Ratio | 5000:1 | |||
| Driving Mode | Constant Current Driving | |||
| Scanning Mode | 1 / 64 | 1 / 52 | 1 / 43 | |
| Working Voltage（V） | 110 ~ 240V 50 ~ 60Hz | |||
| Peak Power（W/㎡） | ≤ 600 | |||
| Average Power（W/㎡） | 100 ~ 240 | |||
| Application parameters | Storage Temperture（℃）&. Humidity（RH） | -20℃ ~ 50℃ &. 10% ~ 60% | ||
| Working Temperature（℃）&. Humidity（RH） | -10℃ ~ 50℃ &. 10% ~ 65% | |||
| Working Life（Hrs） | 100,000 | |||
| Installation Mode | Pedestal / Wall mounting / Hanging / Lifting / Arc installation, etc | |||
| Signal &.Power Double Backup | Optional | |||
