Fine Pitch LED Display F-Gold Series with super wide visual angle.
Die-cast aluminum one-piece structure.

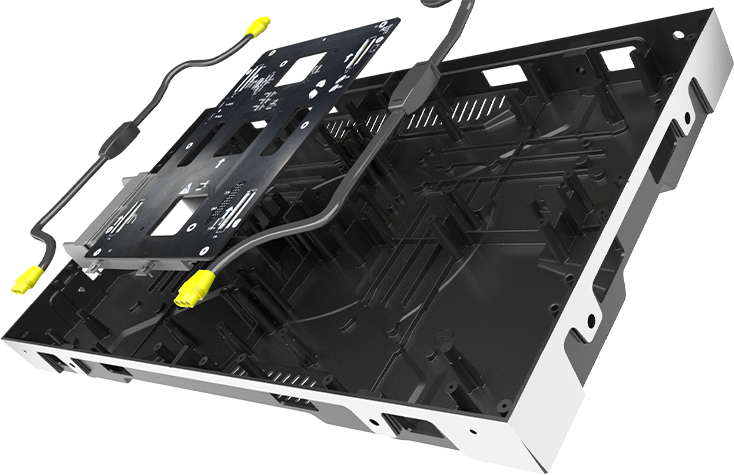

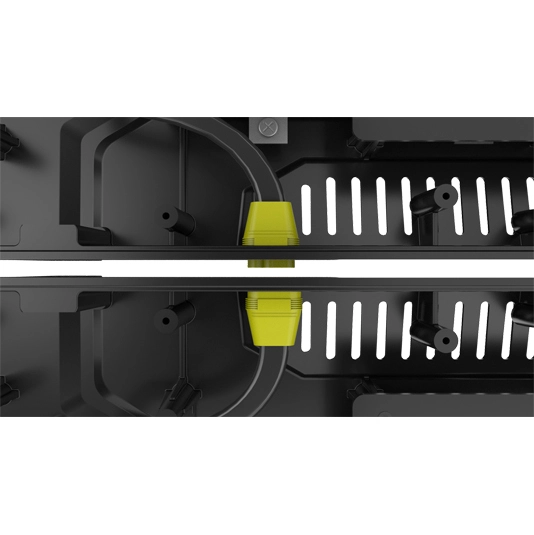

Innovative cable free design.
Support power and signal redundancy.
Seekstarled F-Gold could do with P0.9 P1.2 P1.5 P1.8
| Parameters | Specifications | ||||
| Physical parameters | Pixel Structure（SMD） | IMD 4in1 | 1010 | 1212 | 1515 |
| Pixel Composition | 1R1G1B | ||||
| Pixel Pitch（mm） | 0.93 | 1.25 | 1.56 | 1.87 | |
| Pixel Density（Dots/㎡） | 1137777 | 640000 | 409600 | 284444 | |
| Module Size（mm） | 300（L） * 168.75（W） * 3（H） | ||||
| Module Resolution（Dots） | 320*180 | 240*135 | 192*108 | 160*90 | |
| Module Input（V） | 4.2 ~ 5 | ||||
| Module Peak Power（W) | ≤ 25 | ||||
| Module Material | Pure magnetic suction design without bottom shell | ||||
| Cabinet Resolution（Dots） | 640*360 | 480*270 | 384*216 | 320*180 | |
| Cabinet Modules（Pcs） | 2 * 2 | ||||
| Cabinet Size（mm） | 600（L） * 337.5（W） * 54（H） | ||||
| Cabinet Weight（Kg） | ≤ 6.0 | ||||
| Cabinet Area（㎡） | 0.2025 | ||||
| Cabinet Material | Die casting aluminum | ||||
| Maintenance Mode | Front service | ||||
| Photoelectric parameters | Single Pixel Color/Brightness Calibration | Yes | |||
| White Balance Brightness（Nit） | ≥ 500（0~255 adjustable， adjustment step 1） | ||||
| Standard Color Temperature（K） | 6500（1000~9500 adjustable） | ||||
| Refresh Rate（Hz） | ≥ 3840 | ||||
| Viewing Angle | Vertical horizontal perspective ≥160° | ||||
| Color Processing Digits（Bit) | ≤ 16 Bit | ||||
| Low Brightness &.High Gray Effect | Full brightness ≤ 16Bit， 20% brightness ≤ 14bit | ||||
| Image Feame Changing Frequency（Hz） | 50 / 60 | ||||
| Contrast Ratio | 5000:1 | ||||
| Driving Mode | Constant Current Driving | ||||
| Scanning Mode | 1 / 64 | 1 / 60 | 1 / 64 | 1 / 45 | |
| Working Voltage（V） | 110 ~ 240V 50 ~ 60Hz | ||||
| Peak Power（W/㎡） | ≤ 500 | ||||
| Average Power（W/㎡） | 100 ~ 180 | ||||
| Application parameters | Storage Temperture（℃）&. Humidity（RH） | -20℃ ~ 50℃ &. 10% ~ 60% | |||
| Working Temperature（℃）&. Humidity（RH） | -10℃ ~ 50℃ &. 10% ~ 65% | ||||
| Working Life（Hrs） | 100,000 | ||||
| Installation Mode | Pedestal / Wall mounting / Hanging / Lifting / Arc installation, etc | ||||
| Signal &.Power Double Backup | Optional | ||||

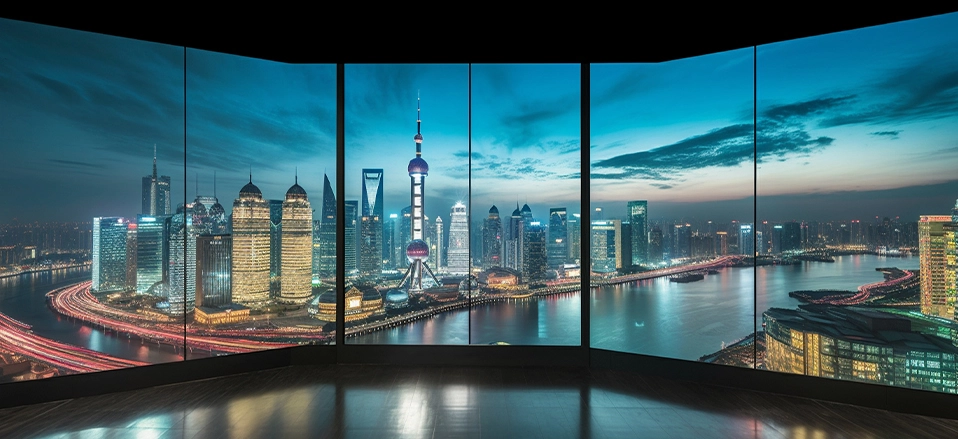

The initial option for indoor permanent installation project scenarios is the Seekstarled F-Gold series. It is convenient for installation on the wall, full front maintenance for the modules, receiving cards, and power supplies, easy installation and maintenance. The indoor led screen performs nearly flawlessly in grayscale even at low brightness levels, displaying outstanding image details without information loss and accurately displaying picture level and vividness. The camera shooting image is stable, there is no ripple or flicker, the image edges are clean, and the viewing experience is pleasant because of the display's high refresh performance.
Sincerely Cooperate and Treat with Sincerity. We look forward to offering you quality LED display.
